Special window shapes
Bending/curving
​
The track can be bent and reversed bent to a 20 cm (8”) radius for bay windows.
​
​
​
​
​
Additionally the track can be continuously curved for special windows like arches, bows and circles.
​
Ceiling bracket
Wall bracket aluminium single
A) 7,5 cm (3”): B) 6,3 cm (2,5”)
A) 10 cm (4”): B) 8,8 cm (3,5”)
Wall bracket aluminium double
A) 15 cm (6”): B) 9,2 cm (3,6”), C) 4,5 cm (1,8”)
A) 20 cm (8”): B) 9,2 cm (3,6”), C) 9,5 cm (3,7”)
Wall bracket aluminium triple
25 cm (10“)

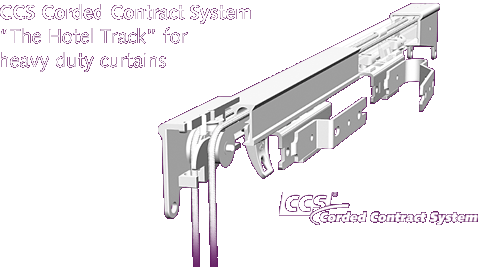

Product information
• Heavy duty cord traverse system, with separate internal cord channels; preventing cord sag and eliminating cord tangle
• Quick installation with “Smart Klick” brackets for wall or ceiling fixed applications.
• Bendable; it can be curved and reversed curved using a 20 cm (8”) radius or continuous curved.
• Suitable for special shaped windows, such as circular, arched or triangular windows.
• Heavy duty clickable carriers - UV protected - for smooth and easy traversing, with an offset eye for straight hanging pleats.
• Can also be used for wave curtain systems.
• Maximum fabric weight: 8 kg per meter (5¼ LBS per ft.).
• Colours available:
From my stock white
From UK stock silver, brown, black,
• Special RAL colours: available to special order for large projects
• Available lengths: from stock any length up to 6 meter (19’8”), (7 meter (23’) to order )
• Track finish: chromated powder coated with a factory applied patented dry lubricant.
Profile
• Aluminium Extrusion.
• Weight: 150 grams per meter (1.62 ounce per ft.).
• Dimensions: 14 mm x 20 mm (0,6” x 0,8”).
For use in
• Hotels - offices - schools - healthcare - residences - boats - campers - planes
• or anywhere an efficient heavy duty cord drawn system is required.
Applications
​
​
Mounting brackets
Wall bracket
3,5 cm (1 3/8")
6 cm (2 3/8")
A) Min. 20 cm (8")
A) Min. 20 cm (6")
Other brackets are available. Brackets need
to be placed every 60 cm (24”).
​
